| สถานที่กำเนิด: | China Mainland |
| ชื่อแบรนด์: | HL |
| ได้รับการรับรอง: | ISO |
| หมายเลขรุ่น: | HL-V09A |
| จำนวนสั่งซื้อขั้นต่ำ: | 1 set |
|---|---|
| ราคา: | Negotiable |
| รายละเอียดการบรรจุ: | Wooden Crate |
| เวลาการส่งมอบ: | 5 - 7 days |
| เงื่อนไขการชำระเงิน: | T/T, Western Union,Pypal |
| สามารถในการผลิต: | 500 sets / month |
| Item: | Plastic Oil Pot | Model: | HL-V09A |
|---|---|---|---|
| Volume: | 500ml | Material: | Plastic |
| Weight: | 280g | Color: | White & Transparent |
| แสงสูง: | surge milker vacuum pump,dairy vacuum pump |
||

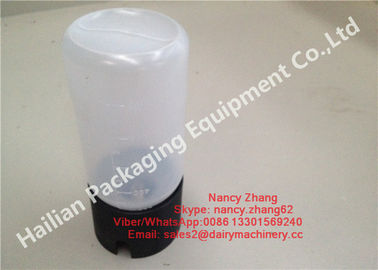

Small Milking Vacuum Pump Parts 500ml Volume Plastic Oil Pot With Oil Saving
Quick Details:
Name: plastic oil pot
Volume: 500ml
Material: plastic
Model: HL-V09 & HL-V09A
Function: loading vacuum pump oil which could lubricate vacuum pump rotary vane
HL-V09A Model
Components:
One whole set vacuum pump set consists of vacuum pump, silencer (stainless steel muffer), oil can (oil pot), belt (pulley) and vacuum pump pallet and some rubber parts.
Features for Vacuum Pump Rotary Vane:
- The fiber vane has a higher flexural strength, it is not easy to deformation and bending.
- It has smaller density than iron, so the centrifugal force is small, it will not wear casing wall.
- With high temperature resistance, it is suitable for 350 - 800 °C.
- With high hardness, on the premise of sufficient oil lubrication, the vacuum pump is very abrasion
resistant and durable.
Specification of Vacuum Pump:
|
Capacity (L/min) |
250 |
300 |
550 |
850 |
1500 |
2100 |
|
Pump Speed (r/min) |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
|
Vacuum Degree(Kpa) |
50 |
50 |
50 |
50 |
50 |
50 |
|
Noise (Db(A)) |
≤50 |
≤50 |
≤60 |
≤70 |
≤70 |
≤70 |
|
Ultimate Vacuum(Mp) |
≤90 |
≤90 |
≤90 |
≤90 |
≤90 |
≤90 |
|
Motor Power(kw) |
1.1 |
1.1 |
2.2 |
3 |
4 |
5.5 |
|
Weight(kg) |
13.5 |
14 |
31 |
36 |
57.5 |
69.5 |
|
Size(L×W×H) (mm) |
230*220*220 |
230*220*220 |
280*270*220 |
300*220*220 |
430*230*230 |
390*290*290 |
Note: The above parameters for reference only!
Description of Vacuum Pump:
The vacuum pump is the heart of the milking machine. Regular servicing helps preserve the vacuum
reserve. Various capacity vacuum pump need different specification vacuum pump pallet. The heavy
duty body of the rotary vane vacuum pump is constructed from chemical resistant cast iron, making it
durable to any environmental working conditions.
The function of vacuum pump is to extract air from the milking machine system through the belt driven.
This milking machine vacuum pump gives flexibility with speeds ranging from about 800-1500 r/min and a
corresponding angel of pump capacities to suit different sizes of milking machines.
